Eco-Guard™
Series 760
Multi-panel systems that can go up to 8 panels on 4 tracks. These create expansive openings up to 32 feet wide. The tandem rollers make them surprisingly easy to operate even at that size.
Product Overview
The Series 760 represents the premium tier of sliding door systems, handling ultra-wide openings that standard doors can’t accommodate. When Pino Windows of the Keys services these doors throughout the Middle Keys, we’re working with engineering that creates nearly seamless glass walls spanning up to 32 feet. These aren’t typical patio sliders; they’re architectural systems that define how luxury Keys homes connect with waterfront environments.
Available configurations reach up to eight glass door panels moving horizontally along lower tracks. Expansions extend to 32 feet for uninterrupted views that transform living spaces. Standard normal panel width hits 48″ with height options spanning 120″ to 144″. These dimensions allow floor-to-ceiling glazing that brings outdoor environments inside while maintaining full hurricane protection.
Performance & Engineering
The heavy-duty tandem roller system is central to making these large configurations practical. Multiple precision rollers under each panel distribute weight and create effortless gliding action. Users can open panels with fingertip pressure despite panels weighing substantially more than standard doors due to larger dimensions and thicker impact glass. This engineering separates functional glass walls from theoretical concepts that look impressive but operate poorly.
Up to 4-track systems allow complex panel arrangements. Panels can bypass each other, slide into pockets, or stack in various configurations depending on specific design intentions. This flexibility creates customizable opening patterns matching how residents actually use spaces rather than limiting them to predetermined panel arrangements.
Design pressure options reach impressive +105/-115 psf in maximum configurations, showing serious wind resistance engineering appropriate for exposed Middle Keys waterfront properties. The dual-point locking mechanism provides security while restricting panels from lifting off tracks during extreme wind events, addressing the same vulnerability standard sliders exhibit but scaled up for much larger installations.
The 4″ standard bottom rail maintains reasonable step-over height for daily use. Optional 9″ rail creates French door appearance, elevating panels substantially above floor elevation while increasing transition challenge for users. Applications near pool decks or terraces might prioritize lower rails facilitating barefoot traffic, while more formal entries could specify the taller profile for enhanced appearance.
Standard ogee bead provides refined glazing details appropriate for premium applications. Hidden installation and assembly screws maintain clean finished appearance without visible fasteners interrupting sight lines. These details separate luxury installations from merely functional sliding door systems.
Concealed installation screws demand careful mounting procedures but deliver the refined appearance these premium systems deserve. Double weather-stripping at all panel interfaces ensures consistent infiltration protection. Heavy-gauge aluminum T6 alloy construction maintains structural integrity across ultra-wide spans while resisting corrosion from constant salt exposure.
Keys-Specific Benefits
Service requirements for these complex systems exceed standard sliding door maintenance. Eight panels create multiple points requiring inspection and lubrication. Four-track configurations demand precise alignment to maintain smooth operation. The heavy-duty tandem rollers are more reliable than basic wheels but still need periodic assessment. Track surfaces accumulate more debris with additional panels sliding across them.
At Pino Windows of the Keys, our service technicians understand the specific requirements of multi-panel multitrack systems. We carry replacement parts for these specialized configurations. Our experience with luxury Middle Keys installations means we address the unique challenges these premium doors present.
Weather-stripping replacement becomes more involved with multiple panels creating numerous seal locations. Getting all interfaces properly sealed maintains both energy efficiency and weather protection. Lock mechanisms across eight panels need systematic inspection ensuring consistent security and panel retention under wind loads.
The optional by-pass and pocket configurations create additional service considerations. By-pass systems where panels slide past each other require precise track alignment. Pocket installations where panels disappear into wall cavities need those cavities maintained free of debris or obstructions that would prevent full panel travel.
Glass replacement in panels this large requires specialized equipment and careful handling. The dimensions and weight make damage during service a real risk without proper procedures and tools. Professional service prevents problems while effectively resolving issues when they occur.
Middle Keys waterfront properties increasingly feature these ultra-wide sliding systems as primary architectural elements. The transformation from traditional separated rooms to open-concept spaces with floor-to-ceiling glass walls defines modern luxury island living. The Series 760 makes these designs functional and hurricane-code-compliant rather than just aesthetically appealing.
Middle Keys homeowners with Series 760 systems gain ultra-wide openings up to 32 feet, up to 8 panels in 4-track configurations, heavy-duty tandem rollers for effortless operation, exceptional wind resistance reaching 115 psf, and by-pass or pocket options for customization. Keep these premium systems operating perfectly with professional service from Pino Windows of the Keys providing comprehensive multi-panel inspection, specialized tandem roller maintenance, track system cleaning and alignment, weather-strip replacement across all interfaces, and lock mechanism servicing ensuring your Middle Keys home’s dramatic glass walls function flawlessly while staying protective.
Specifications
Features:
- Heavy-gauge aluminum T6 alloy
- Concealed installation screws
- Double weatherstripping
Dimensions & Performance:
- Panel Height: Over 120″ to 144″
- Max Normal Panel Width: 48″
Additional Features
- 4″ Standard bottom rail w/ optional 9″ bottom rail for French-door look
- Dual-point locking mechanism provides added security by restricting panels from being lifted off the tracks
- Standard with ogee bead
- Heavy-duty tandem rollers allow easy opening with just your fingertips
- Hidden installation and assembly screws for a sleek, finished appearance
Options:
- Up to eight glass door panels move horizontally along lower tracks
- Expansions of up to 32′ for uninterrupted views and a great source of natural light
Related Products

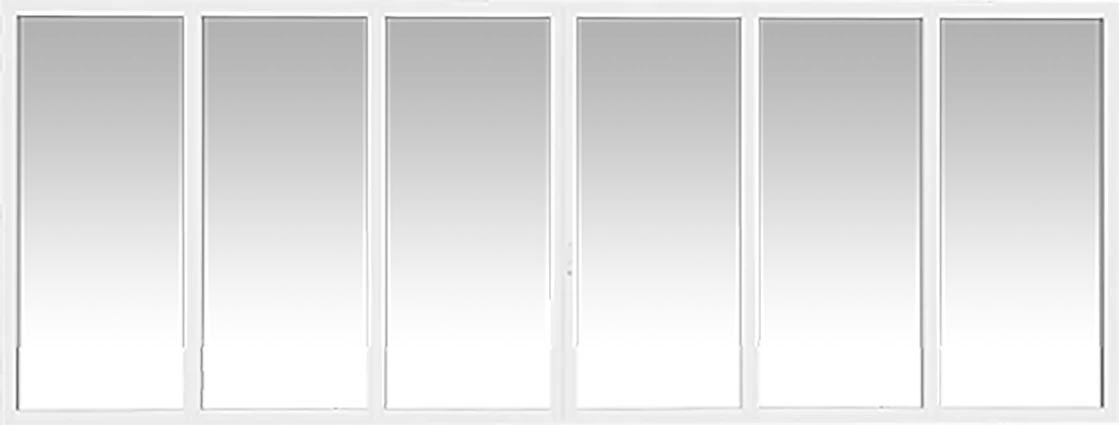

Eco-Guard™ Series E700-3
